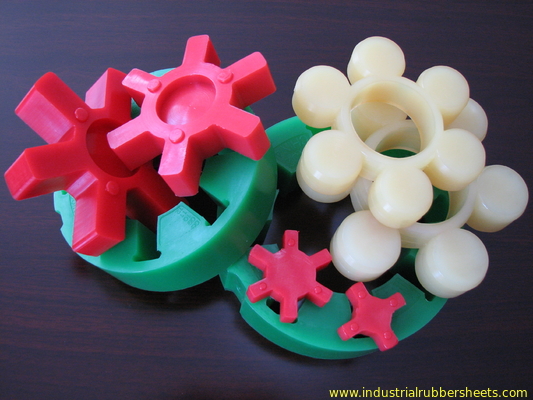

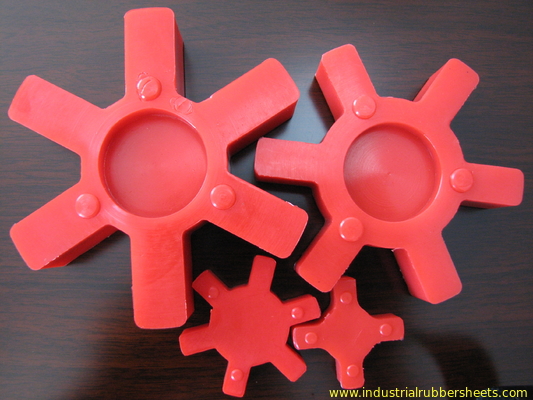

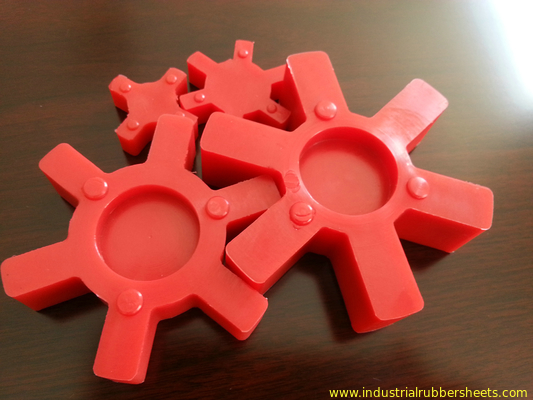

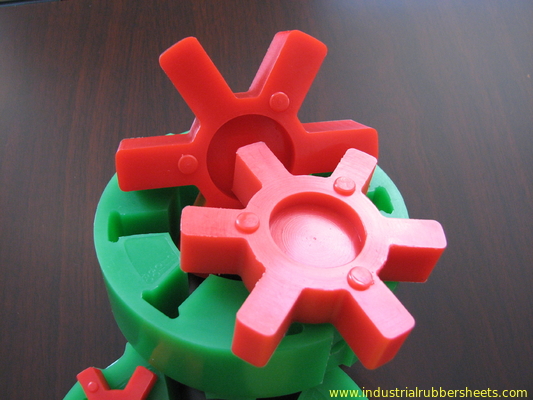

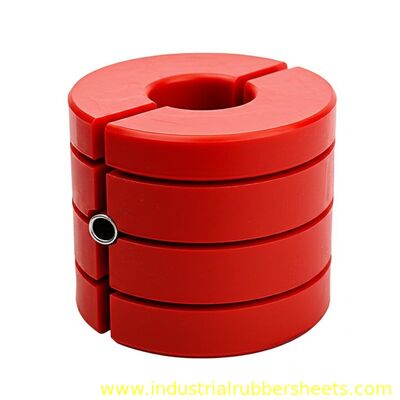

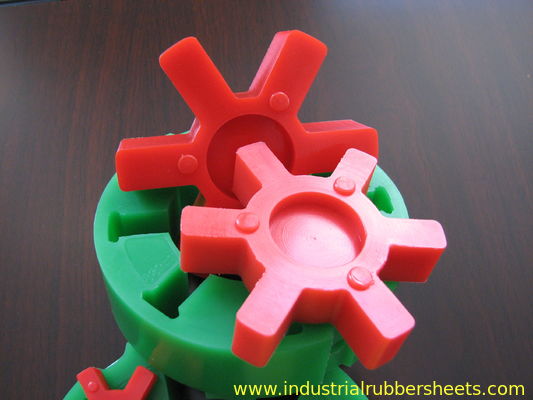

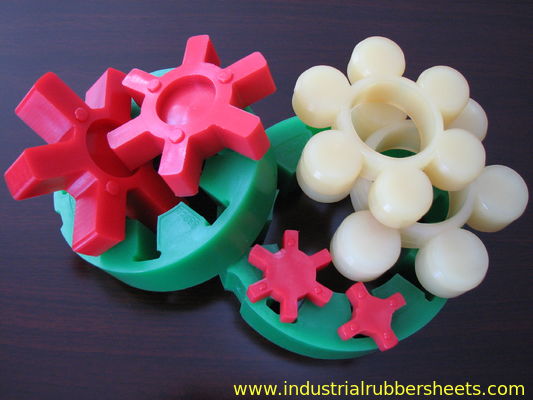

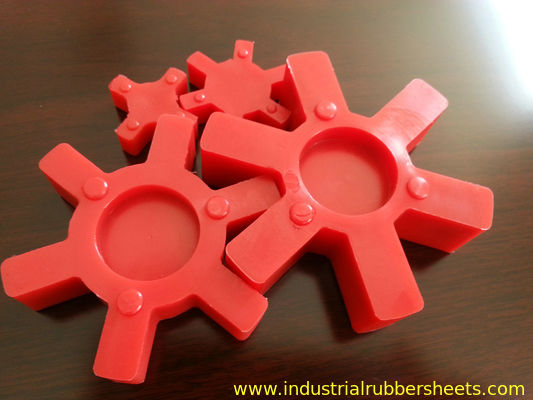

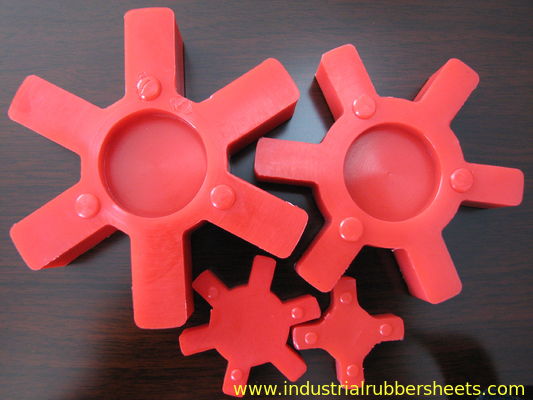

L Type Pu Koppeling, Polyurethaankoppeling met Allerlei Kleur
Materiaal: |
NBR, CSM/SBR of TPU | Kleur: | Rode zwarte, |
| Hardheid: | 80-98shore A | Grootte: | L035-225 |
| Het werk Temperatuur: | -20oC - +100oC |
L type rubberkoppeling, l-polyurethaankoppeling, de koppeling van L Pu
Specificaties
1. Materiaal: Gietijzer GG25
2. Goede stabiliteit
3. Gemakkelijk te handhaven
4. Iso9001-2000 certificaat
Het koppelen:
1. De koppeling van de kaakkoppeling HRC/kc-koppeling/FL-het koppelen
2. Flensgietijzer, Tussenvoegsel Bubber
3. Spits droeg universele reeks
4. De spiebaanafmetingen zijn met DIN6885, GB1095-1979-normen in overeenstemming.
Grootte |
Type | A | B | D | E | Norm | Metrisch droeg | De duim droeg | ||
| Droeg | Min | Maximum | Min | Maximum | ||||||
| L035 | 1 | 16 | 20.5 | 6.6 | -- | 3 | 3 | 8 | 1/8“ | 3/8“ |
| L050 | 1 | 28 | 43.2 | 15.6 | -- | 6 | 6 | 15 | 3/16“ | 5/8“ |
| L070 | 1 | 35 | 50.8 | 19 | -- | 9 | 9 | 19 | 3/16“ | 3/4“ |
| L075 | 1 | 45 | 54.7 | 21 | -- | 9 | 9 | 25 | 3/16“ | 1“ |
| L090 | 1 | 54 | 54.7 | 21 | -- | 9 | 9 | 28 | 3/16“ | 1 1/8“ |
| L095 | 1 | 54 | 63.7 | 25.5 | -- | 9 | 9 | 28 | 3/8“ | 1 1/8“ |
| L099 | 1 | 64.5 | 72.5 | 27 | -- | 12 | 12 | 35 | 7/16“ | 1 3/8“ |
| L100 | 1 | 64.5 | 88.5 | 35 | -- | 12 | 12 | 35 | 7/16“ | 1 3/8“ |
| L110 | 1 | 85 | 108 | 43 | -- | 15 | 15 | 48 | 1/2“ | 1 7/8“ |
| L150 | 1 | 96 | 115.4 | 45 | -- | 15 | 15 | 48 | 5/8“ | 1 7/8“ |
| L190 | 1 | 115 | 133.4 | 54 | 101.6 | 19 | 19 | 55 | 5/8“ | 2 1/4“ |
| L225 | 1 | 127 | 153.4 | 64 | 108 | 19 | 19 | 65 | 3/4“ | 2 5/8“ |
Anderen standaardgrootte voor polyurethaankoppeling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
Falk-r 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
standaardgrootte voor rubberkoppeling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Toestel 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
de speciale grootte bouwt het vormen volgens de tekeningen van de koper
*** wanneer u onderzoek, pls het aantal en hoeveelheid ** van het product bevestigt
